GZJ Aerosol Filling Machine With PLC-Controlled Filling And Crimping System
The GZJ Aerosol Filling Machine is a robust, PLC-controlled filling and crimping system engineered for fast, accurate aerosol production. Designed with stainless-steel contact parts, modular tooling and flexible dosing controls, it handles a wide range of can sizes and valve types while delivering consistent fill accuracy, safe propellant charging and reliable crimp seals for industrial-scale manufacturing.
Usage scenarios:
Typical uses include high-volume manufacturing of aerosol products such as deodorants, hair sprays, insecticides, lubricants and household cleaners where precise liquid dosing, propellant charging and leak‑free crimping are essential. It’s also ideal for contract packagers and co‑packers who require rapid SKU changeovers and compatibility with multiple can formats, as well as R&D and pilot lines for small‑batch formulation testing. The GZJ can be integrated into automated packaging lines with weighing, leak‑detection and labeling stations and configured for controlled‑atmosphere or inert‑gas filling to meet safety and regulatory requirements.
Product details

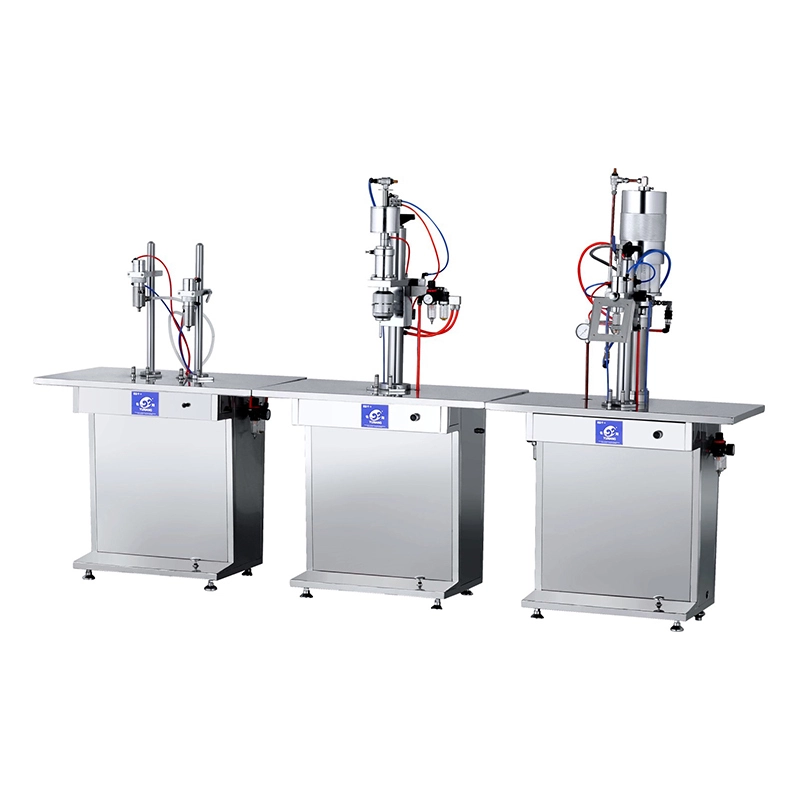

GZJ Three-in-one Aerosol Filling Machine:This machine is made from the former semi-automatic aerosol filling machine.It asse-mbles the liauid filling, inflate and seal on the same table, it needs only one worker to operate it.It has high speed, high-accuracy and good stabilization.Good choice for the midium-sized and small-scale company.
| Parameter Name | Parameter Value |
| The filling capacity | 30-500ml |
| Filling accuracy | ≤ ±1% |
| Production capacity | 800-1200 b/h |
| For the valve | 1" |
GZJ Semi-automatic Aerosol Filling Machine:Semi-automatic Aerosol Filling Machine is suitable for filling all kinds of liquid materials, such as thin liquid(kerosene), thick liquid(facial cleanser. PU foam)etc
| Parameter | Specification |
| Filling range | 30–500ml |
| Filling accuracy | ≤ ±1% |
| Height of tank | 70–330mm |
| Production capacity | 1200–1600 cans/hour |
GZJ Automatic Aerosol Filling Machine:The machine is produced by absorption of foreign advanced technology. Its filling end is controlled separately, no discharging without filling; being sealing-guided, the machine will automatically stop if the sealing quality isn't good; the way of the oriented inflation in the charging end is accurate and efficient with minimal gas consumption. It can be matched with automatic weighing machine, automatic capping machine and spray code machine. Being in the peer-leading level, the machine has been exported to Europe, America, Africa, and Southeast Asia.
| Parameter | Specification |
| Filling Capacity | 50–750ml |
| Technical Parameters (Filling Accuracy) | ≤ ±1% |
| Inflation Capacity | 50–750ml |
| Inflation Accuracy | ≤ ±1% |
| Crimping Accuracy | ≤1% |
| Production Capacity | 1800–2400 cans/hr |
| Working Pressure | 0.65–1Mpa |
| Maximum Air Consumption | 3m²/min |
| Applicable Aerosol Can Diameter | 35–65mm |
| Applicable Aerosol Can Height | 80–330mm |
