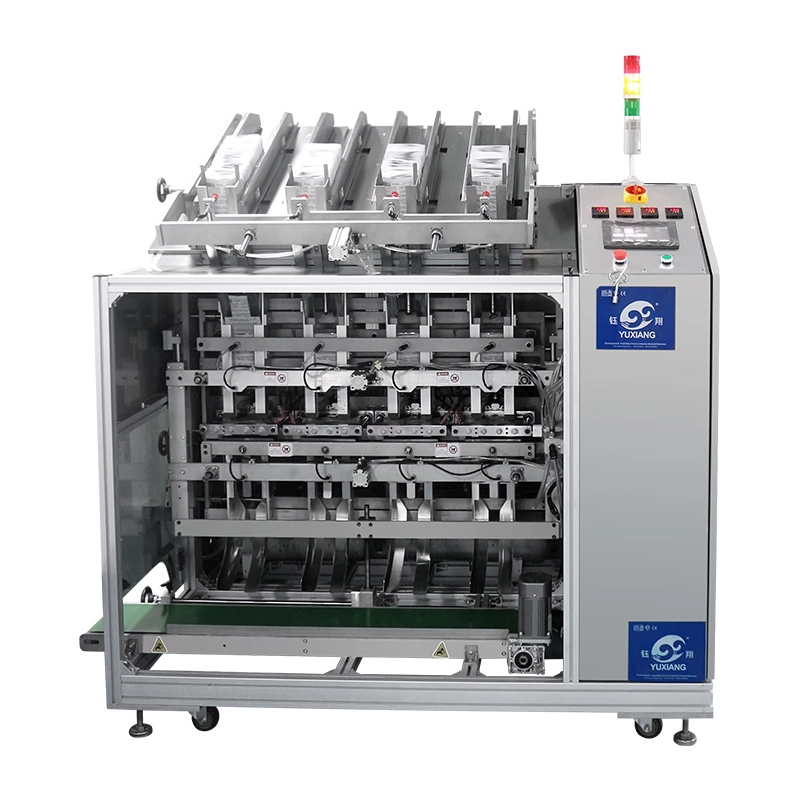

GZJ-M Automatic facial Mask Filling & Sealing Machine
GZJ-M Automatic Facial Mask Filling & Sealing Machine features precision volumetric dosing, adjustable sealing parameters, and PLC-driven controls to deliver consistent fills for gel, cream, serum formulations and to integrate with single-use sachets or sheet-mask pouches. Automated operation reduces labor needs and material waste, increases throughput and batch traceability, and supports scalable production and regulatory compliance for contract manufacturers and cosmetic producers.
Product Specifications
| Parameter | Specification |
| Capacity | 3500–4500 pcs/h |
| Working Voltage | AC220V~380V (Optional) |
| Accuracy | ±0.5~1% |
| Filling Head | 4 heads |
| Working Pressure | 0.6~0.8 Mpa |
| Overall Dimension | 2950 × 900 × 1650 mm |
| Power | 2.2 kw |
| Sealing Temperature | 120~200℃ (Adjustable) |
| Bag Opening Method | Suction Cup Automatic Opening |
| Mask Size | W85/160mm × H110/195mm |
Working processes
Bag automatic dropping→Auto filling→Auto sealing→Auto printing→Finished
Technical feature
Automatic packaging process, no need to manual operation;
Material contact parts adopt high quality stainless steel manufacturing, according to GMP standard.
Intelligent detection, bag filling sealing, no bag, no filling, no sealing.
Germany PLC system, powerful, durable.
The machine applies 7 inch color touch screen with easy and clear setup parameter, as well as auto diagnosis for errors.
Intelligent digital display temperature control system. The sealing automatic temperature compensation, temperature control precision, the seal failure rate low.
The machine pneumatic selects the well-known brand, long working life, convenient maintenance replacement.
According to customer different way of packing, the filling nozzles can be customized.
