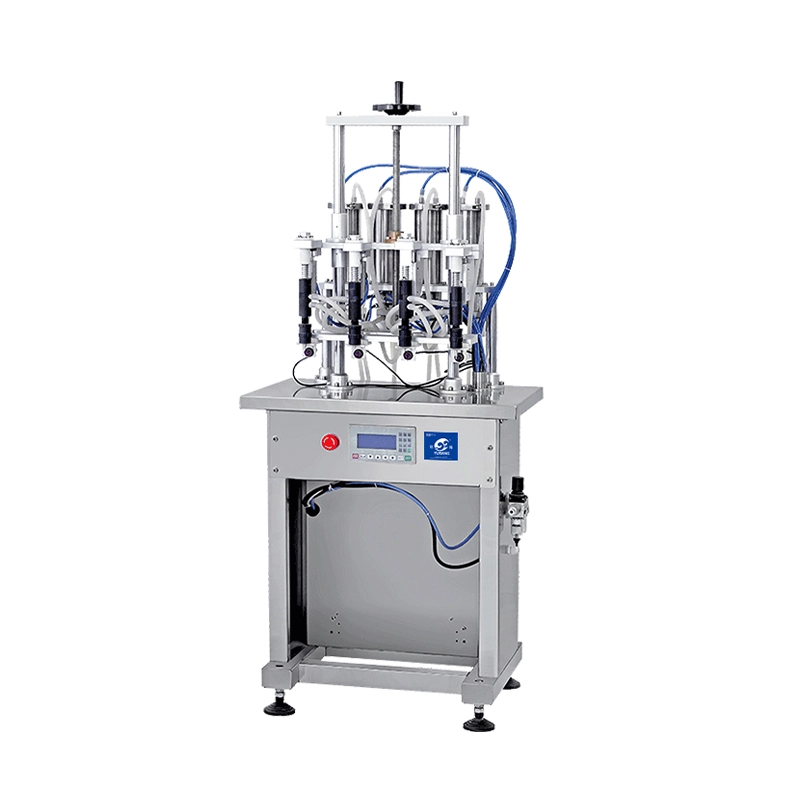

Manual And Automatic Four Heads Vacuum Perfume Filling Machine
Vacuum perfume filling machines are used to precisely dispense volatile fragrance formulas while minimizing evaporation and foaming, making them ideal for perfume manufacturers, contract packers and boutique perfumers who must protect scent integrity. They suit both small-batch artisanal runs and high-throughput production, handling glass or plastic bottles, vials, rollerballs and refill cartridges, and can be configured as semi‑automatic or fully integrated with capping and labeling lines. By delivering consistent fill accuracy, reducing product loss and contamination, they support R&D, private‑label brands and retail refill stations that require hygienic, repeatable perfume filling.
Product Specifications
| Model | Filling volume | Filling speed | Pressure supply |
| GZJ-5 | 5-60ml | 0-45bot/min | 0.2-0.6Mpa |
| GZJ-10 | 10-120ml | 0-35bot/min | 0.2-0.6Mpa |
| GZJ-25 | 25-250ml | 0-30bot/min | 0.2-0.6Mpa |
| GZJ-50 | 50-500ml | 0-30bot/min | 0.2-0.6Mpa |
| GZJ-100 | 100-1000ml | 0-25bot/min | 0.2-0.6Mpa |
| GZJ-250 | 250-2500ml | 0-18bot/min | 0.2-0.6Mpa |
| GZJ-500 | 500-5000ml | 0-12bot/min | 0.2-0.6Mpa |
GZJ-SL Water Filling Machine
| Model | (ml) Filling volume | (bot/h) Capacity | Working Principle | Filling speed | Filling precision | Pressure work | Power supply |
| GZJ–SL1 | 3–5000 | 900–1800 | Electric gear pump | Adjustable | ≤±1% | Normal Pressure | 220V/380V |
| GZJ–SL2 | 10–5000 | 2800–3800 | Electric gear pump | Adjustable | ≤±1% | Normal Pressure | 220V/380V |
Characteristics and advantages
This machine is made of imported mechanical parts, piston, cylinder, stainless steel and PTFE.
The high quality imported components and excellent design ensure the leading position in the domestic machinery industry.
The horizontal filling machine is specially design which can be easily portable. It can be automatically suction the material in case of feeding the hopper all the time.
Manual and automatic switch function optioned. When the machine is in automatic working condition, it will automatically and continuously fill according to the setting speed. When under manual status, it should be controlled by pressing the pedal. If not release the pedal it will turn to automatically and continuously filling.
The cylinder, tee-joint adopt hand cuffs type connection which can be conveniently disassembled and assembled without the need of using any special tools. The machine can be also easily cleaned.
Leakage proof filling system is to drive the closure head when the cylinder move up and down. When the cylinder is down, the closure head will go down, the valves will be opened and the system starts to fill. When the cylinder is up, the closure head will go up the valve will be closed and stop filling, so that the leakage and dripping are prevented.
