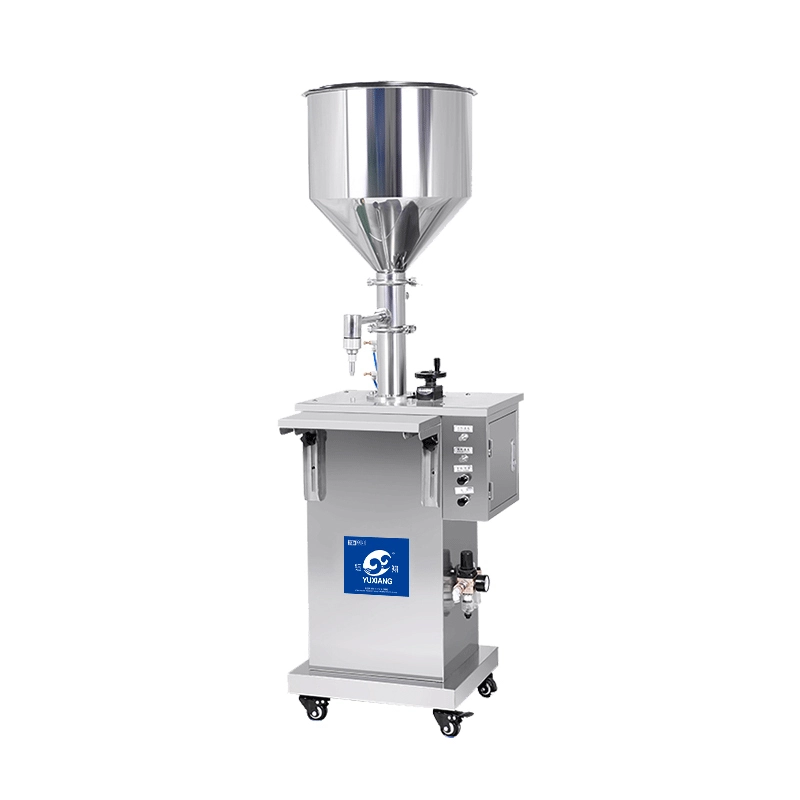

Semi-automatic vertical filling machine
The semi-automatic vertical filling machine is a compact, reliable solution for accurately dispensing liquids, creams, gels and low-viscosity pastes into bottles, jars, sachets or pouches. Built with adjustable fill volume, stainless-steel wet parts, and simple PLC-assisted controls with a foot pedal or hand trigger, it delivers consistent fill accuracy while minimizing product waste and cleanup time. Ideal for small- to mid-size production runs, pilot lines or packaging stations, the unit offers quick changeovers, low maintenance and easy operator training to boost throughput without the footprint or cost of full automation.
Usage scenarios：Use it on a production floor to fill sauces, dressings, shampoos, lotions or chemical concentrates into bottles and jars during batch runs where a single operator manages multiple stations. Deploy it in R&D labs or pilot plants for scaled-up trials and product sampling before committing to fully automated equipment. It also fits well in co-packing, artisanal food, cosmetics and small pharmaceutical operations that need flexible, accurate filling without large capital investment.
Product Specifications
| Model | Filling volume | Filling speed | Pressure supply |
| GZJ-5 | 5-60ml | 0-45bot/min | 0.2-0.6Mpa |
| GZJ-10 | 10-120ml | 0-35bot/min | 0.2-0.6Mpa |
| GZJ-25 | 25-250ml | 0-30bot/min | 0.2-0.6Mpa |
| GZJ-50 | 50-500ml | 0-30bot/min | 0.2-0.6Mpa |
| GZJ-100 | 100-1000ml | 0-25bot/min | 0.2-0.6Mpa |
| GZJ-250 | 250-2500ml | 0-18bot/min | 0.2-0.6Mpa |
| GZJ-500 | 500-5000ml | 0-12bot/min | 0.2-0.6Mpa |
GZJ-SL Water Filling Machine
| Model | (ml) Filling volume | (bot/h) Capacity | Working Principle | Filling speed | Filling precision | Pressure work | Power supply |
| GZJ–SL1 | 3–5000 | 900–1800 | Electric gear pump | Adjustable | ≤±1% | Normal Pressure | 220V/380V |
| GZJ–SL2 | 10–5000 | 2800–3800 | Electric gear pump | Adjustable | ≤±1% | Normal Pressure | 220V/380V |
Characteristics and advantages
This machine is made of imported mechanical parts, piston, cylinder, stainless steel and PTFE.
The high quality imported components and excellent design ensure the leading position in the domestic machinery industry.
The horizontal filling machine is specially design which can be easily portable. It can be automatically suction the material in case of feeding the hopper all the time.
Manual and automatic switch function optioned. When the machine is in automatic working condition, it will automatically and continuously fill according to the setting speed. When under manual status, it should be controlled by pressing the pedal. If not release the pedal it will turn to automatically and continuously filling.
The cylinder, tee-joint adopt hand cuffs type connection which can be conveniently disassembled and assembled without the need of using any special tools. The machine can be also easily cleaned.
Leakage proof filling system is to drive the closure head when the cylinder move up and down. When the cylinder is down, the closure head will go down, the valves will be opened and the system starts to fill. When the cylinder is up, the closure head will go up the valve will be closed and stop filling, so that the leakage and dripping are prevented.
Product Details
Our semi-automatic filling machine features four core strengths to boost your production efficiency. First, the user-friendly control panel allows quick operation, with adjustable filling speed, suction speed, manual/auto mode switching, and one-key reset for smooth workflow. Second, the high-quality anti-drip filling nozzle prevents dripping and wire drawing, keeping your production area clean and reducing waste. Third, the cylinder feeding system ensures adequate, smooth flow, even for high-viscosity materials like creams and pastes, avoiding clogging. Finally, the imported AirTAC pneumatic cylinder guarantees stable, reliable performance with long service life. These features combine to deliver consistent, accurate filling results for cosmetics, pharmaceuticals, and daily chemical industries.
