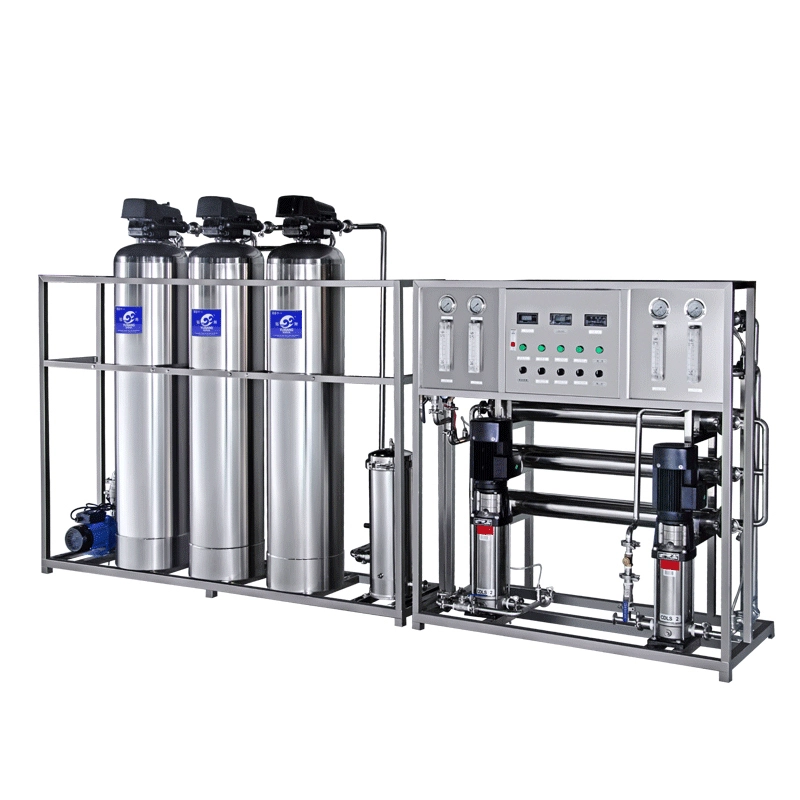

YX-RO Stainless Steel RO Water Treatment
YX-RO Stainless Steel RO Water Treatment combines corrosion-resistant stainless steel construction with high-rejection reverse osmosis membranes and modular pre/post-filtration to remove dissolved solids, chlorine, and bacteria for industrial, commercial, and laboratory water purification. Designed for continuous operation with automated cleaning cycles, digital monitoring and standard control interfaces, it lowers operating costs, ensures consistent low-TDS output, and simplifies compliance with water quality requirements.
Product Specifications
| Model | RO-500 | RO-1000 | RO-2000 | RO-3000 | RO-5000 | RO-6000 | RO-10000 | RO-20000 |
| Capacity (T/H) | 0.5 | 1.0 | 2.0 | 3.0 | 5.0 | 6.0 | 10.0 | 20.0 |
| Power (KW) | 0.75 | 2.2 | 4.0 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Recovery (%) | 55-75 | 55-75 | 55-75 | 55-75 | 55-75 | 55-75 | 55-75 | 55-75 |
| One Stage Finished Water Conductivity (μs/cm) | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 |
| Two Stage Finished Water Conductivity (μs/cm) | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 |
| EDI System Finished Water Conductivity (μs/cm) | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
| Raw Water Conductivity (μs/cm) | ≤300 | ≤300 | ≤300 | ≤300 | ≤300 | ≤300 | ≤300 | ≤300 |
Product Details
The equipment detail design is professional
and reasonable
Secondary concentrated water flow
Primary pure water flow
Secondary pure water flow
Performances and Features
This system occupy little space, easy to operate, wide application range.
When used for disposing industrial water, the reverse osmosis device does not consume large amounts of acids and alkalis, and there is no secondary pollution. In addition, its operation cost is also low. Reverse osmosis desalting rate≥99%, machine desalting rate≥97%. 98% of organic matters, colloids and bacteria can be removed. Finished water under good electric conductivity, one stages≤10μs/cm, two stage around 2-3μs/cm, EDI≤0.5μs/cm (base on raw water≤300μs/cm). High operation automation degree. It is unattended. The machine will automatically stop in case of water sufficiency and automatically start in case of no water. Timed flushing of front filtering materials by automatic controller. Automatic flushing of reverse osmosis film by IC microcomputer controller. Online display of raw water and pure water electric conductivity. Imported parts account for over 90%.Application fields
Electronic industry water: integrated circuit, silicon wafer, display tube and other electronic components
Pharmaceutical industry water: large infusion, injection, tablets, biochemical products, equipment cleaning, etc.
Chemical industry process water: chemical circulating water, chemical products manufacturing, etc.
Electric industry boiler feeding water: thermal power generation boiler, low pressure boiler power system in factories and mines
Food industry water: purified drinking water, beverage, beer, alcohol, health products, etc.
Seawater and saline water desalination: islands, ships, marine drilling platforms, saline water areas
Purified drinking water: house properties, communities, enterprises, etc.
Other process water: automobile, home appliance painting, coated glass, cosmetics, fine chemicals, etc.
