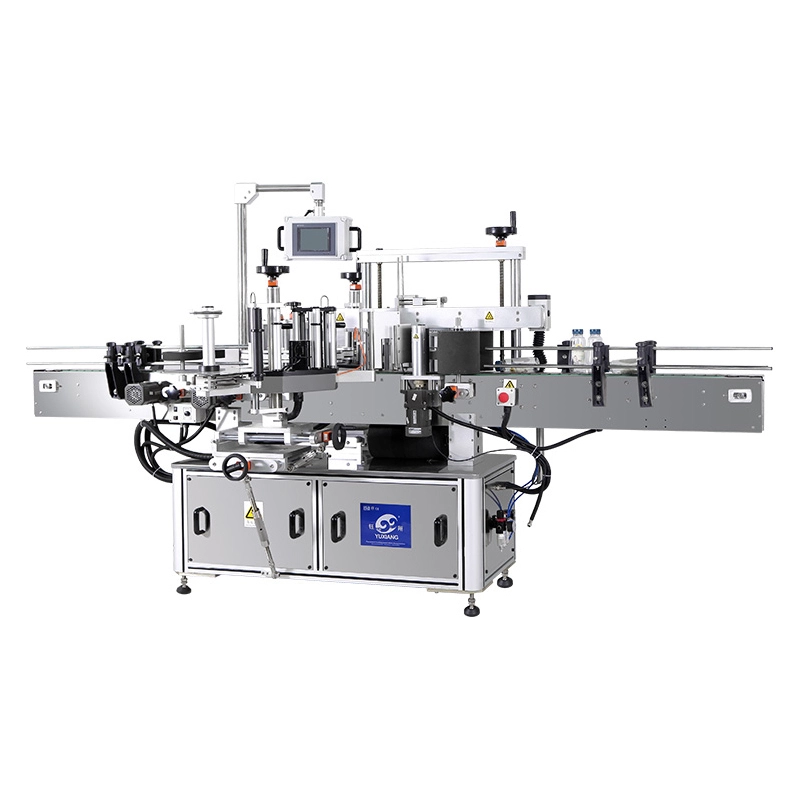

Automatic Round & Flat Bottle Labeling Machine
Automatic Round & Flat Bottle Labeling Machine series, including the TBJ line, delivers high-precision, high-speed labeling for round, flat, and irregular containers. Featuring sensor-guided alignment, adjustable tension control, and customizable settings, it works with roll labels to ensure seamless, waste-free operation. Its inline integration reduces labor and label waste while boosting production line output, consistency, and traceability. Available in fully automatic, semi-automatic, and compact models (JT-260W), it caters to diverse packaging needs for cosmetics, pharmaceuticals, and food industries.
Models:
1. TBJ Automatic flat bottle labeling machine
2. TBJ Round bottle labeling machine
3. JT-260W Small round bottle labeling machine
4. TBJ-Horizon round bottle labeling machine
5. TBJ-Semi-automatic flat bottles labeling machine
6. TBJ-Semi-automatic round bottles labeling machine
Product Specifications
| English Parameter | Specification |
| Power supply | AC220V, 50Hz, 1200W |
| Labeling speed | 60m/min |
| Labeling precision | ±1mm |
| Label max. height | 205mm |
| Diameter of bottles | Φ20–120mm |
| Label inside diameter | Φ76.2mm |
| Max Label diameter | Φ350mm |
| Overall measurement | L2000 × W1200 × H1500mm |
| Air source | 3–5kg, 30L/min |
Product features
This model applies to cosmetics, beverages and pharmaceutical industries areas.
Equip with PLC touch screen has two language of Chinese and English,easy to operate. Labeling sending system can be changeable by adjustment of 8 - dimensional space, easily changeable to suitable for different bottles size. Adopt dynamical soft rubber-covered roll?to make sure labeling quality,the structure of Cylinder clamping roller would improve the labeling precision. Speciallabel for round bottles, precision is high and will not appear bubble on the surface. Air compressor is reciprocating type,to positioni thebottles, it can stick one or both label at one time,it is special suitable for both sides labeling. We can customized machine for your request, the labeling machine can be connect with filling machine,screw capping machine, material transport pump,etc.
