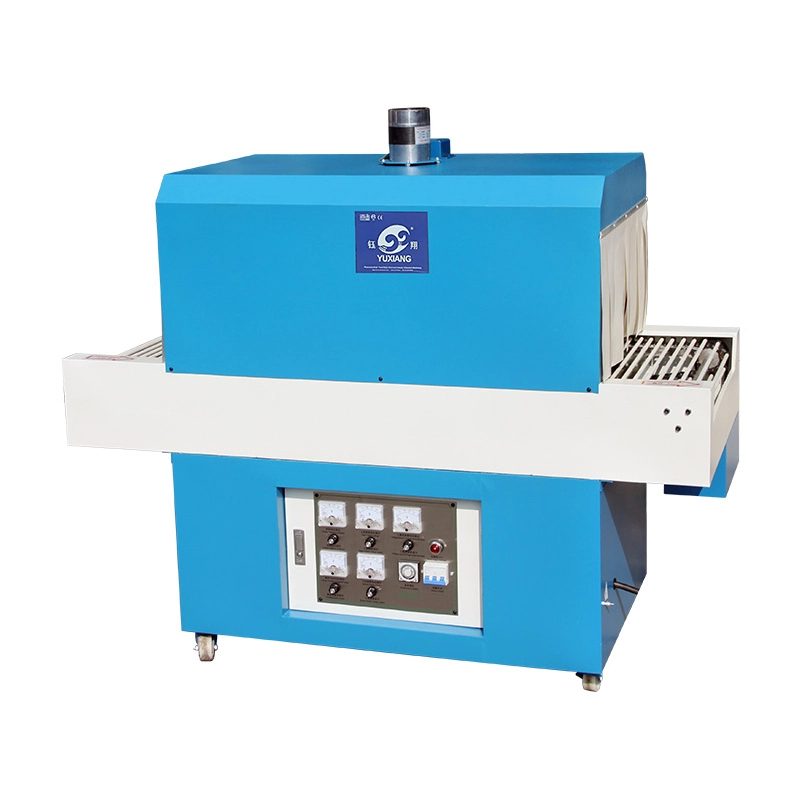

Shrinking Film Package Machine

Adjustable multi-zone temperature control, variable-speed conveyor and servo-driven film delivery enable continuous shrink wrapping of bottles, cartons and bundled products with uniform seals. PLC operation and inline integration reduce manual handling, minimize film consumption through precise tensioning, and increase production throughput while ensuring repeatable package quality.

Scope of application: It's suitable for film shrinking packaging of beverage, beer, mineral water, cans, glass bottles, with paper holder or without bottom collection.

Models: 1. GZF-Automatic cuff style without paper holder(with paper holder) sealing & shrinking series

2. Film shrinking & packing machine

3. Hot air circulation drying oven

Inquiry

Write a Review

Product Specifications

Parameter	ST-6030AH	SM-6040
Level height of feeding product	850±50mm / 1500mm	850±50mm
Max size for packaging	L700 × W300 × H300 (mm)	L(no limited) × W600 × H400 (mm)
Packing speed	15–18 pcs/min	0–8 m/min
Power Supply / Power	3φ / 220V/380V 50/60Hz 2KW	3φ / 220V/380V 50/60Hz 20KW
Air Source Requirement	0.6Mpa (6Kg/cm²)	-
Sealing and Cutting Time / Temperature	0.5–1.5S / 0–250℃	0–250℃
Width / Thickness of Packaging Film	Max × 650mm / 0.04–0.12mm	-
Installation Dimensions	L1500 × W2700 × H2000 (mm)	L3000 × W970 × H1800 (mm)
Net Weight	465kg	650kg

Application Scope & Scenario Adaptation

This shrinking film packaging machine series is specially designed for bottled beverages, canned products such as beverage, beer, mineral water, cans, glass bottles. It supports both paper holder and bottomless collection packaging modes, suitable for large-scale production lines like bottled water, beer filling and beverage processing lines. It can complete overall shrink packaging of finished products after collection, with both packaging protection and label display functions, adapting to high-speed assembly line operations.

Dual-Mode Adaptation for Higher Flexibility

Supports paper holder type and bottomless type sealing and shrinking modes, which can be flexibly switched according to customer packaging requirements. The paper holder mode is ideal for products that need stable stacking and anti-fall (such as glass bottles, heavy cans), while the bottomless mode adapts to lightweight, low-cost packaging for bottled drinks, meeting different customers' packaging specifications and cost control needs.

High-Speed Operation for Large-Scale Production

The packaging speed can reach up to 15-18m/min (SJ-5030AH) and 0-8m/min (SM-6040), which fully matches the rhythm of large-scale industrial production lines. It greatly improves the efficiency of the packaging process, reduces bottlenecks in the production line, and adapts to production capacity requirements from thousands to tens of thousands of bottles per hour, providing stable support for large-scale production.

Multi-Voltage Compatibility for Easy Installation

Provides 380V/50Hz and 220V/50Hz power supply options, fully adapting to the power supply systems of domestic factory workshops and small production sites. The equipment adopts a modular structural design, the installation process is simple, no complex civil engineering renovation is needed, and it can be quickly docked with existing filling and packaging production lines, reducing equipment deployment costs and cycles.

Intelligent Temperature Control for Uniform Shrinkage Effect

Adopts a 0-250℃ wide-range adjustable temperature control system, suitable for various shrink film materials such as PE and POF. By precisely controlling the sealing and heating temperature, it ensures uniform and tight fitting of the film body without wrinkles or cracks. The finished packaging product has a smooth surface and high transparency, which can effectively protect the product from damage and moisture during transportation and improve the product appearance display effect.

High Energy Efficiency for Lower Operating Costs

Equipped with a hot air circulation system, which has high thermal energy utilization and reduces energy loss. The complete machine power is controlled in the range of 20KW-29KW, which ensures high packaging efficiency while reducing power consumption during long-term operation. The core components of the equipment are made of wear-resistant and high-temperature resistant materials, with low failure rate, reducing later maintenance and replacement costs, and the comprehensive operation economy is excellent.

Stable and Durable for Long-Term Heavy Load

The machine body is made of heavy-duty steel structure, with excellent load-bearing performance, which can withstand the load of high-speed packaging operations for a long time. The key transmission components are precision manufactured, with strong running stability and low noise, avoiding equipment loss under long-term heavy load. At the same time, it is equipped with a complete safety protection mechanism to ensure the stability and safety of the equipment during continuous operation and extend the service life of the whole machine.
