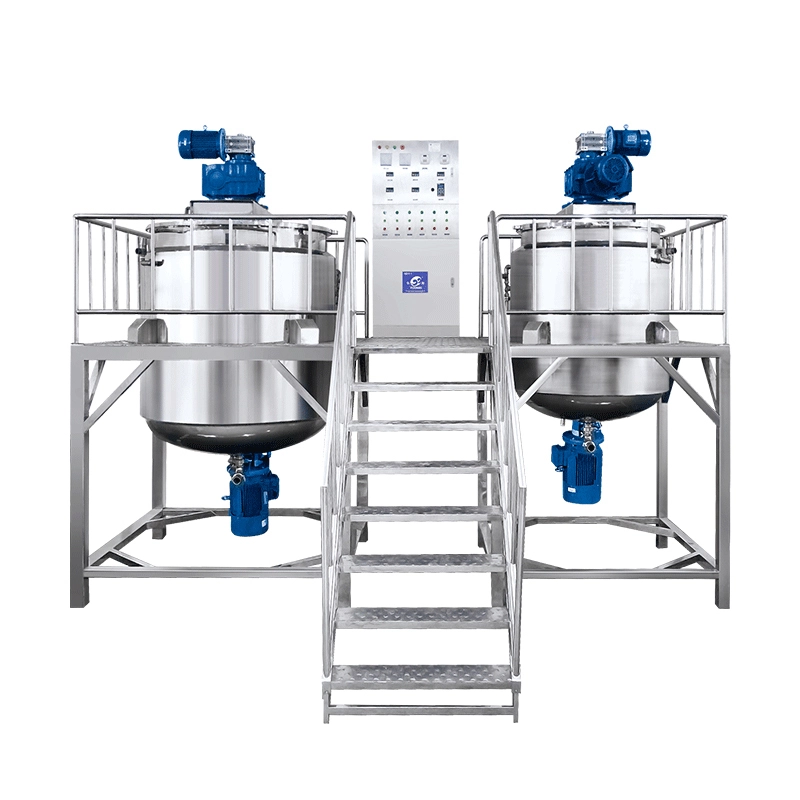

JBJ Liquid Washing Detergent Homogenizer Mixer Machine
JBJ-I Liquid washing homogenizing mixer is available for liquid products such as detergent, perfume, lotion etc.
The mixer is consists of mixing, homogenizing, heating,cooling and pump discharge and defoaming function. it is the idealest equipment for liquid washing products for cosmetic industry over the world.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Specifications
| Model | Volume (L) | Blending Power (kW) | Blending Rotation Speed (rpm) | Homogenizing Power (kW) | Homogenizing Rotation Speed (rpm) | Heating Way |
| JBJ-200 | 200 | 1.5 | 0~65 | 3 | 3000 | Steam or electric |
| JBJ-500 | 500 | 2.2 | 0~65 | 4 | 3000 | Steam or electric |
| JBJ-1000 | 1000 | 2.2–4 | 0~65 | 7.5 | 3000 | Steam or electric |
| JBJ-1500 | 1500 | 4–5.5 | 0~65 | 11 | 3000 | Steam or electric |
| JBJ-2000 | 2000 | 5.5 | 0~53 | 11 | 3000 | Steam or electric |
| JBJ-3000 | 3000 | 7.5 | 0~53 | 15 | 1500 | Steam or electric |
| JBJ-5000 | 5000 | 11 | 0~53 | 22 | 1500 | Steam or electric |
Product Details
B-1 (11)
B-2 (10)
转子
网孔定子
B-3 (6)
B-4 (6)
Performance & feature
The wall scraping mixer adopts frequency converter to adjust the mixing speed which would make various kinds of products according to the customers' requirements.
The diversified high speed homogenizer can powerfully mix solid liquid products and dissolve the material like AES, AESA, LSA etc. it save energy consumption and shorten the production time. The pot body is welded with three layers imported stainless steel. The whole machine and pipes are mirror polished which is definitely satisfied with the GMP standard. According to different processing, the main pot can be heated and cooled down. steam heating or electric heating. Discharge from the bottom by the homogenizer or by a transfer pump.Structure
components
1. Speed reducer
2. Positioning seat
3. Current baffling board
4. Oblique paddle
5. Suspension support and foot
2. Positioning seat
3. Current baffling board
4. Oblique paddle
5. Suspension support and foot
6. Temperature probe
7. Material outlet
8. Heat preservation layer
9. Heating rod
10. Homogenizer
7. Material outlet
8. Heat preservation layer
9. Heating rod
10. Homogenizer
Paddle type blending
Performance & feature
The system is specially designed for small and medium-sized enterprises. It can work for three batches every day. The system is consists of main pot, ancillary pot, stainless steel suction pump, platform and controlling system.
We shall pour materials into the main pot to dissolve, mix, homogenize. Then the material pump will transfer the material into the second pot to cool down or mix with perfume essence. It can be discharged by both the homogenizer and pump. It is better for electric heating condition. The main pot is used for heating and homogenizing, the second pot is used for cooling and emulsion. This makes it fast and efficient.
